Ethernet Slip Ring 6A IP54 100M Ethernet

Name: Ethernet Slip Ring 6A IP54 100M Ethernet
Brand: JINPAT
Price: 1 USD

Brand Name : JINPAT

Model Number : LPC-06A-E2

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : TT/CC/Paypal

Supply Ability : 500 units/week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Type : Ethernet

Configuration : Capsule

characteristics : compact

Number of circuits : 1

Feature : 100M Ethernet

Working Temperature : -40~+80℃

Contact Now

100M Ethernet Slip Ring with Compact Size Optional Wire Length Multiple Slip Ring Models

Description

The Capsule Slip Ring is a part that transmits 100M Ethernet with one circuit. It is especially designed for Ethernet signal transmission. Working in a voltage of 240VAC, the slip ring has a low electrical noise of ≤15mΩ (50rpm). Moreover, it can operate in a wide working temperature of

-40~+80℃. Strictly speaking, it is a custom slip ring that has been applied in the equipment.

Specification

Circuits	1 * 100M Ethernet
Working Voltage	240VAC
Dielectric Strength	Between circuits≥500V@50Hz
Insulation	100MΩ@500VDC
Electrical Noise	≤15mΩ (50rpm)
Working Speed	0~300rpm
Contact	Precious Metal
Wire Size	CAT5E(eight-core twisted shielded wire)
Lead Wire Length	Rotor:250 mm, Stator:250mm
Temperature	-40°C~+80°C
Humidity	≤60%RH
IP	IP54

Outline Dimension

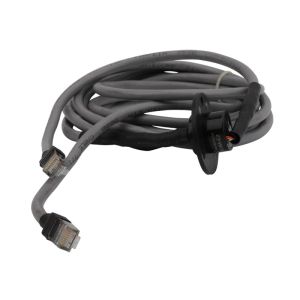

Product Image

Ethernet Slip Ring 6A IP54 100M Ethernet
