Mini Type Wind Turbine Slip Rings,3 Circuits 10A Capsule Length 42.53mm,For CCTV Pan

Name: Mini Type Wind Turbine Slip Rings3 Circuits 10A Capsule Length 4253mmFor CCTV Pan
Brand: JINPAT
Price: 22 USD

Place of Origin : Guangdong, China

Brand Name : JINPAT

Model Number : LPC-03P

Type : Electronic Accessories

Control Channels : 3 Channels

Max Speed : 300rpm

Voltage : 240 VAC/DC

Current Rating : 10 amps per circuit

Contact Material : Gold to Gold

Features : Remote Control

MOQ : 1

Price : US$22

Contact Now

Bargain Price Only in Alibaba

Standard middle-sized Capsule Slip Ring is able to integrate over 125 circuits, with optional outer diameter from 22mm~54mm. This series adopts advanced military-standard surface processing techniques, and is highly precise, compact and easy to assemble. Gold-to-gold contact ensures low resistance and super long service life. It is able to integrate various signals: Ethernet, USB, RS, LVDS, CAN bus, Fire Wire, SDI and HDMI, etc.

Features:

Military standard surface processing /Precise/Gold-to-gold contact/Low resistance/Long service life

Options:

Rotating speed/Life span/Protection grade/Number of circuits/Current capacity/Size/Housing material/Mass produc-tion

Main applications:

High speed dome/Camera platform/Electrical testing equipment/Rotary table /Manufacturing and control equipment

Features:

3 circuits or more models according to customer requirements
Speed up to 300 rpm continuous
Gold-gold contacts
Color-coded, silver-plated insulated lead wires
Longer lead wire available
Compatible with data bus protocols
Transferring analog and digital signals
Sealed units are available

Advantages:

Precious metal brush with gold-gold contact, long lifetime
Multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates.
Precision ball bearings meet or exceed life requirements for most commercial applications
Quick shipment, smooth running
360°continuous rotation

Typical Application:

Electrical Test Equipment
Offshore Cranes
Indexing Table
CCTV Pan & Tilt Camera Mounts
Robotics, Rotary Sensors, Urgent Illumination Equipment
Optical Pod, Turntable
Aviation, Military Instrument, Medical Equipment
Mini-type Coiling Machine
LED Lights Equipment
Wind Turbine Generator

Specifications
Operating Speed	0-300 rpm
Circuits	3 @ 10 amps
Voltage	240 VAC/DC
Rated Current	10 amps per circuit
Temperature Range	-20℃ ~ +60℃
Contact Material	Gold to Gold
Lead Size	10 amps, AWG17
Lead Length	Standard 250 mm (9.843inch)
Dielectric Strength	≥500 VAC @50Hz, between each circuit
Insulation Resistance	100 MΩ@ 500 VDC
Electrical Noise	1mΩMin

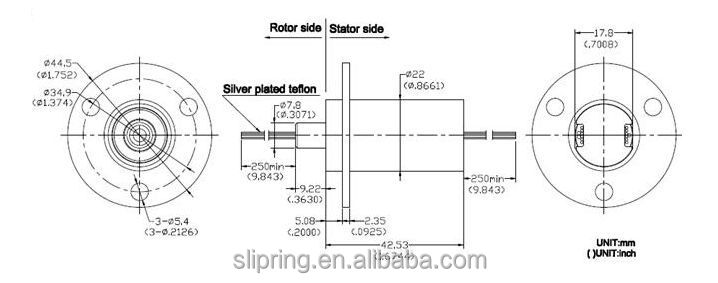

Outline Drawing

Our Advantages

Welcome to JINPAT Electronics

Providing free custom slip rings solutions,creating propulsion for your technology

With a large plant of over 12,000 square meters and more than 500 employees.
The company has been awarded the title of "National High and New Technology" and has obtained 69 patents.
Long-term cooperation with global famous enterprises and agents all over the world.
With Over 10,000 designs with success in civil, military, commercial and industrial applications.
Founded in 1996, with more than 20 years of production and R & D experience.
Providing free custom slip rings solutions,which can be suitable for a variety of equipment
Fast delivery

Typical Application

Company Information

FAQ

1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

3.What kinds of slip rings do we provide

Electrical Slip rings (capsule slip ring,through-hore slip ring,miniture slip ring, etc)
Signal Slip rings (USB2.0/USB3.0 slip ring,fiber optic rotary joint,high frequency slip ring,etc)
Pneumatic/Hydraulic Rotary Unions
Custom Slip Rings
Large volume series

4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you provide custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
