3 Circuit 10A Capsule Slip Ring for Electrical Test Equipment

Bargain Price Only in Alibaba

Standard middle-sized Capsule Slip Ring is able to integrate over 125 circuits, with optional outer diameter from 22mm~54mm. This series adopts advanced military-standard surface processing techniques, and is highly precise, compact and easy to assemble. Gold-to-gold contact ensures low resistance and super long service life. It is able to integrate various signals: Ethernet, USB, RS, LVDS, CAN bus, Fire Wire, SDI and HDMI, etc.

LPC-03P Slip Ring parameter

LPC-03P Slip Ring Main Application

• Electric devices
• Motor equipment
• Industrial machinery
• LED industry
• Medical equipment
• Process control equipment

LPC-03P Slip Ring Main Application

• Monitoring
• Electrical testing equipment
• Military rotary table
• Robotics
• Medical equipment
• Rotating platform
• Displaying and demonstrating equipment
• Instruments and meters
• LED industry

LPC-03P Slip Ring Features

• High life
• Very low contact resistance
• Compatible with data bus protocol
• Smooth operation and high stability
• Low torque
• Various types of data signals
• Compact structure

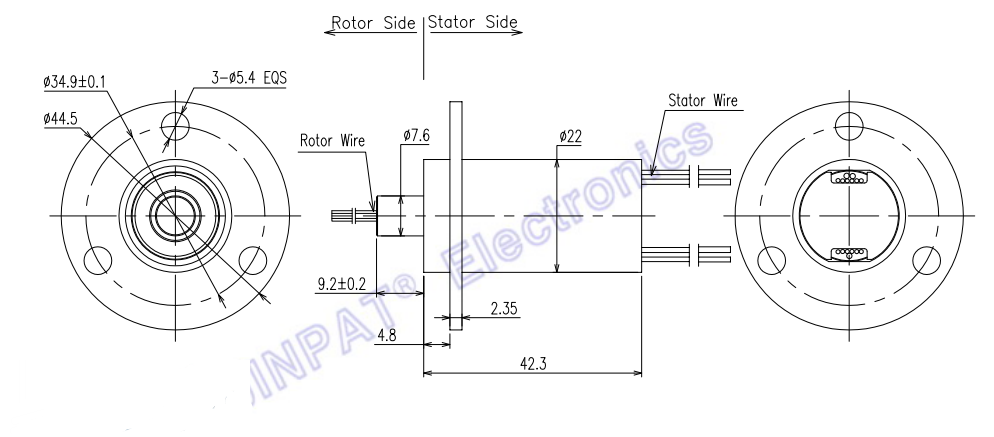

LPC-03P Slip Ring Outline Drawing

Product Image

Welcome to JINPAT Electronics

Providing free custom slip rings solutions,creating propulsion for your technology

• With a large plant of over 12,000 square meters and more than 500 employees.
• The company has been awarded the title of "National High and New Technology" and has obtained 69 patents.
• Long-term cooperation with global famous enterprises and agents all over the world.
• With Over 10,000 designs with success in civil, military, commercial and industrial applications.
• Founded in 1996, with more than 20 years of production and R & D experience.
• Providing free custom slip rings solutions,which can be suitable for a variety of equipment
• Fast delivery

1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

3.What kinds of slip rings do we offer

• Electrical Slip rings (capsule slip ring,through-hore slip ring,miniture slip ring, etc)
• Signal Slip rings (USB2.0/USB3.0 slip ring,fiber optic rotary joint,high frequency slip ring,etc)
• Pneumatic/Hydraulic Rotary Unions
• Custom Slip Rings
• Large volume series

4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
